[Introduction] Mine feeder capable of withstanding high pressure and realizing continuous feeding.
[Capability] 10-450t/h
[Application] Widely used in mining, construction, energy and other industries. It can be used to transport various bulk and granular materials. According to the requirement of conveying technology, it can be transported by a single conveyor or by multiple conveyors or by other conveying equipments to form a horizontal or inclined conveying system to meet the needs of different operation requirement.
[Improvement] Speed-regulating motor is used to adjust the ORE-FEEDING quantity by changing the belt speed.
Chat With Us
Leave Message
1. Low power consumption and easy operation.
2. Easy installation and large conveying capacity.
3. little noise.
4. The structure is simple and easy to maintain.

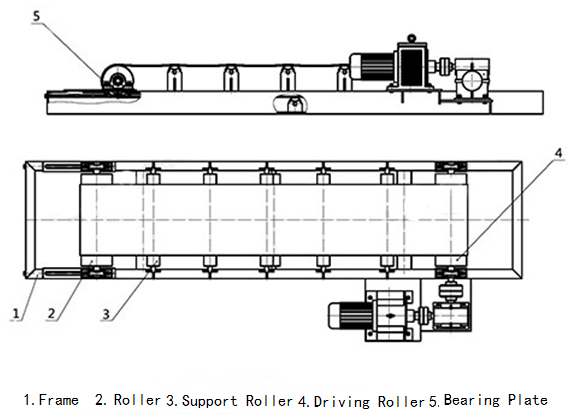

The material passes through the funnel to the belt feeder. With the working of the motor, the belt moves forward, and the material on the belt surface enters the next working progress.
|
Model |
Belt Width mm |
Center Distance between Head and Tail Roller mm |
Roller diameter mm |
Capacity t/h |
Feeding Size mm |
Motor |
Weight kg |
|
|
Model |
Power kw |
|||||||
|
500*1000 |
500 |
1000 |
219 |
10-100 |
50 |
Y90S-4 |
1.1 |
266 |
|
500*1300 |
500 |
1300 |
219 |
10-100 |
50 |
YCT112-4B |
0.75 |
266 |
|
500*1500 |
500 |
1500 |
219 |
10-100 |
50 |
YCT132-4A |
1.1 |
293 |
|
500*1800 |
500 |
1800 |
219 |
10-100 |
50 |
YCT132-4B |
1.5 |
300 |
|
500*2000 |
500 |
2000 |
219 |
10-100 |
50 |
YCT132-4A |
1.1 |
767 |
|
500*2500 |
500 |
2500 |
219 |
10-100 |
50 |
Y100L1-4 |
2.2 |
538 |
|
500*3000 |
500 |
3000 |
219 |
10-100 |
50 |
Y90S-4 |
1.1 |
560 |
|
500*3500 |
500 |
3500 |
219 |
14-140 |
55 |
YCT160-4A |
2.2 |
640.4 |
|
500*5000 |
500 |
5000 |
219 |
14-140 |
50 |
Y90L-4 |
1.5 |
899 |
|
650*1000 |
650 |
1000 |
219 |
77 |
50 |
YCT160-4A |
2.2 |
1206 |
|
650*1500 |
650 |
1500 |
219 |
77 |
50 |
YCT160-4A |
2.2 |
1100 |
|
650*2000 |
650 |
2000 |
219 |
77 |
50 |
YCT160-4B |
3 |
1021 |
|
650*2500 |
650 |
2500 |
219 |
77 |
50 |
YCT160-4B |
3 |
1120 |
|
650*3500 |
650 |
3500 |
320 |
77 |
50 |
YCT160-4B |
2.2 |
1235 |
|
800*1000 |
800 |
1000 |
325 |
27-275 |
80 |
YCT160-4A |
2.2 |
873 |
|
800*3000 |
800 |
3000 |
219 |
170 |
80 |
Y100L1-4 |
2.2 |
773 |
|
800*4000 |
800 |
4000 |
219 |
170 |
80 |
YCT200-4A |
5.5 |
1886 |
|
800*4500 |
800 |
4500 |
400 |
170 |
80 |
YCT200-4A |
5.5 |
1200 |
|
1000*2000 |
1000 |
2000 |
400 |
200-450 |
100 |
YCT160-4B |
3 |
1549 |
|
1000*2500 |
1000 |
2500 |
400 |
200-450 |
100 |
YCT160-4B |
3 |
2105 |
|
1000*6000 |
1000 |
6000 |
400 |
200-450 |
100 |
YCT225-4A |
5.5 |
5214 |
|
1200*3000 |
1200 |
3000 |
450 |
240-400 |
100 |
YCT160-4B |
3 |
3000 |
|
1200*6000 |
1200 |
6000 |
450 |
300 |
100 |
YCT225-4B |
15 |
5500 |
|
1200*6500 |
1200 |
6500 |
450 |
200-300 |
100 |
YCT225-4B |
15 |
6010 |
