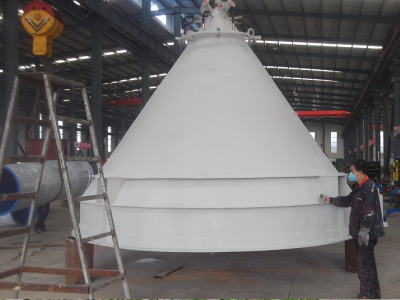

[Introduction] A conical high-efficiency concentrator has a bottom flow concentration of about 70%.
[Capability] 60-2600 m3/h
[Application] High-efficiency deep cone concentrator is mainly used for concentrating minerals. It can also be used for concentrating other fine-grained and low-density slurries and wastewater treatment.
[Improvement] The bottom cone angle is large and the bottom flow concentration is high. Small area, high automation, and energy saving.
Chat With Us
Leave Message
Advantages
Structure
The main components of the equipment are concentrated pond and rake mud scraper. The solid particles suspended in the pulp settle in the pond under the action of gravity, and the upper part becomes clarified water, so the solid and liquid can be separated. Sludge deposited at the bottom of the concentrator is continuously scraped and collected by a rake dredger and discharged from the central outlet of the bottom of the concentrator, while clarified water overflows along the upper edge of the concentrator.
Technical Parameter
|
Model |
Diameter m |
Depth m |
Area m2 |
Capacity m3/h |
|
GSNJ-3 |
3 |
4.4 |
21 |
60-70 |
|
GSNJ-6 |
6 |
8.8 |
85 |
210-260 |
|
GSNJ-9 |
9 |
13.5 |
310 |
570-700 |
|
GSNJ-12 |
12 |
17.5 |
510 |
800-1200 |
|
GSNJ-15 |
15 |
19 |
1200 |
1000-1500 |
|
GSNJ-18 |
18 |
22 |
2000 |
1400-2100 |
|
GSNJ-20 |
20 |
22.8 |
2700 |
2100-2600 |
