[Introduction] The feeder is simple in structure, suitable for conveying non-cohesive materials, simple in structure, uniform in feeding, good in continuity, adjustable in exciting force, changing and controlling flow rate at any time, and easy to operate.
[Capability] 7-1700t/h
[Application] It is widely used in mining, metallurgy, building materials, coal, chemical industry, electric power, water conservancy and other industries.
[Improvement] Ore feeding capacity can be adjusted at any time.
Chat With Us
Leave Message
1. Simple structure, small size, light weight and easy maintenance.
2. Feeding uniformity, good continuity and adjustable exciting force.
3. Using the resonance principle of mechanical vibration, the energy consumption is small.
4. Changing and controlling the flow rate at any time is easy to operate. When working, the material jumps forward continuously according to the parabolic trajectory, and the material trough wears less.
5. Eccentric block is the excitation source, with low noise, low power consumption, good regulation performance and no impulse phenomenon.
6. Closed fuselage can prevent dust pollution and smooth vibration.

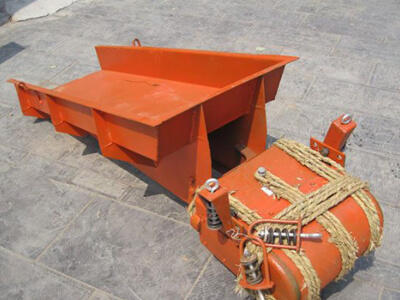

The material in the trough is thrown up continuously during the feeding process, and jumps forward according to the parabolic trajectory to achieve the goal of continuous, uniform and quantitative feeding. Electromagnetic vibration feeder adopts thyristor half-wave rectification control mode, which is convenient for flow regulation and can realize centralized control and automatic control.
|
Type |
Model |
Capacity |
Feeding Size |
Amplitude mm |
Vibration frequency (time/min) |
Voltage v |
Electric current A |
Power kw |
Weight kg |
||
|
tph |
mm |
||||||||||
|
Horizontal |
-10° |
|
Working current |
Mark Current |
|||||||
|
Basic |
GZ1 |
5 |
7 |
50 |
1.75 |
3000 |
220 |
1.34 |
1 |
0.06 |
77 |
|
GZ2 |
10 |
14 |
50 |
3 |
2.3 |
0.15 |
151 |
||||
|
GZ3 |
25 |
35 |
75 |
4.6 |
3.8 |
0.2 |
233 |
||||
|
GZ4 |
50 |
70 |
100 |
8.4 |
7 |
0.45 |
460 |
||||
|
GZ5 |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
668 |
||||
|
GZ6 |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1271 |
||
|
GZ7 |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1920 |
||||
|
GZ8 |
400 |
560 |
300 |
39.4 |
32 |
4 |
3040 |
||||
|
GZ9 |
600 |
840 |
500 |
47.6 |
38.6 |
5.5 |
3750 |
||||
|
GZ10 |
750 |
1050 |
500 |
39.4×2 |
32×2 |
4.0×2 |
6491 |
||||
|
GZ11 |
1000 |
1400 |
500 |
47.6×2 |
38.6×2 |
5.5×2 |
7680 |
||||
|
Upper |
GZ3S |
25 |
35 |
75 |
1.75 |
220 |
4.6 |
3.8 |
0.2 |
242 |
|
|
GZ4S |
50 |
70 |
100 |
8.4 |
7 |
0.45 |
457 |
||||
|
GZ5S |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
666 |
||||
|
GZ6S |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1246 |
||
|
GZ7S |
250 |
350 |
250 |
24.6 |
20 |
2.5 |
1963 |
||||
|
GZ8S |
400 |
560 |
300 |
39.4 |
32 |
4 |
3306 |
||||
|
Closed |
GZ1F |
4 |
5.6 |
40 |
1.75 |
220 |
1.34 |
1 |
0.06 |
78 |
|
|
GZ2F |
8 |
11.2 |
40 |
3 |
2.3 |
0.15 |
154 |
||||
|
GZ3F |
20 |
28 |
60 |
4.6 |
3.8 |
0.2 |
247 |
||||
|
GZ4F |
40 |
50 |
60 |
8.4 |
7 |
0.45 |
464 |
||||
|
GZ5F |
80 |
112 |
80 |
12.7 |
10.6 |
0.65 |
668 |
||||
|
GZ6F |
120 |
168 |
80 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1278 |
||
|
Slight |
GZ5Q |
100 |
140 |
200 |
1.75 |
220 |
12.7 |
10.6 |
0.65 |
653 |
|
|
GZ6Q |
150 |
200 |
250 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1326 |
||
|
GZ7Q |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1992 |
||||
|
GZ8Q |
400 |
560 |
350 |
39.4 |
32 |
4 |
3046 |
||||
|
Horizontal |
GZ5P |
50 |
140 |
100 |
1.75 |
220 |
12.7 |
10.6 |
0.65 |
633 |
|
|
GZ6P |
75 |
210 |
300 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1238 |
||
|
GZ7P |
125 |
350 |
350 |
24.6 |
20 |
2.5 |
1858 |
||||
|
Wide |
GZ5K1 |
|
200 |
100 |
1.5 |
220 |
12.7×2 |
10.6×2 |
0.65×2 |
1212 |
|
|
GZ5K2 |
|
240 |
100 |
1343 |
|||||||
|
GZ5K3 |
|
270 |
100 |
1376 |
|||||||
|
GZ5K4 |
|
300 |
100 |
1408 |
|||||||
