Linear Vibrating Screen

[Introduction] A high-frequency vibrating screen with reciprocating motion of the screen box along a directional straight line.

[Application] Linear vibrating screen is suitable for dehydration, desliming, dehydration and dense medium separation.

[Improvement] The inclination angle of the linear screen can be adjusted, and the vibration motor is used as the exciter with low energy consumption.

Chat With Us Leave Message

Advantages

  1. Good sealing, no dust spillover.
  2. Low energy consumption, low noise and long service life of screen.
  3. Screening accuracy is high, processing capacity is large, and structure is simple.
  4. Fully enclosed structure, automatic layout, more suitable for pipeline operation.
  5. All parts of the sieve body are welded with tied steel plates and profiles (some of which are bolted together) with good overall rigidity and reliability.

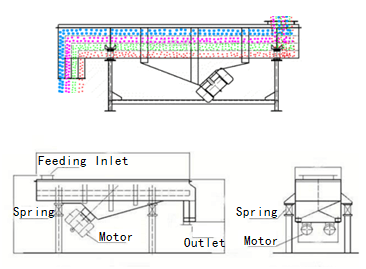

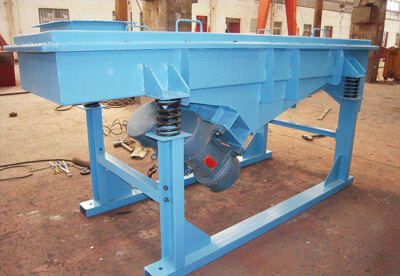

Structure

Linear vibrating screen is driven by double vibrating motor. When two vibrating motors rotate synchronously and reversely, the exciting force produced by eccentric block cancels each other in the direction parallel to the axis of the motor, and superimposes the combined force in the direction perpendicular to the axis of the motor, so the trajectory of the screen machine is a straight line.

The two motor shafts have an inclination angle relative to the screen surface. Under the combined action of exciting force and material gravity, the material is thrown up and jumped forward in a straight line motion on the screen surface, so as to achieve the purpose of material screening



Technical Parameter

Model

Sieving Area m2

Amplitude mm

Motor

Power kw

Revolution rpm

Weight kg

DZS0410

0.4×1.0

2~4

YZO-3-6

0.25

960

650

DZS0412

0.4×1.2

2~4

700

DZS0415

0.4×1.5

2~4

760

DZS0612

0.6×1.2

3~5

865

DZS0718

0.7×1.8

3~5

YZO-10-6

1

960

1027

DZS0815

0.8×1.5

4~6

YZO-18-6

1.1

960

1053

DZS0918

0.9×1.8

4~6

YZO-20-6

2

960

1086

DZS0922

0.9×2.2

4~6

YZO-20-6

2×1.5

960

1164

DZS1018

1.0×1.8

4~6

YZO-16-6

2×1.1

960

1215

DZS1020

1.0×2.0

YZO-16-6

2×1.1

960

1280

DZS1225

1.25×1.25

4~6

YZO-20-6

2×2

960

1326

DZS1530

1.5×3.0

4~6

YZO-36-6

2×3

960

1875

DZS21530

1.5×3.0

4~6

960

2056

DZS1536

1.5×3.6

4~6

960

1935
