Rotary Disk Vacuum Filter

Rotary Disk Vacuum Filter

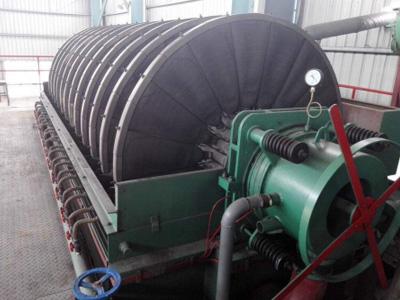

[Introduction] Disc vacuum filter is a device that uses vacuum as filtering power to separate solid and liquid from slurry. It is suitable for dewatering non-ferrous metal concentrate and fine material.
[Filtration area] 10-96 m2
[Application] Dewatering operations in non-ferrous metal concentrates, fine materials, coal washery, non-metallic mines, chemical industry and environmental protection industries.
[Improvement] The slurry tank is divided into several lattices, two distributor heads can be set on a single machine, and two different slurry can be treated at the same time.

Chat With Us Leave Message
  1. 1.The dewatering holes on the fan-shaped filter plate are evenly distributed, the porosity is reasonable and the size of the ribs is large. It is made of high-strength engineering plastics, and the service life is increased by 2-3 times.
  2. 2.Wear-resistant nylon, single or double filter cloth, high efficiency and not easy to plug.
  3. 3.Electromagnetic stepless speed regulation. Cycloid needle wheel is used in the motor and worm wheel drive in the reducer. It is easy to operate, high efficiency, low noise and low energy consumption.
  4. 4. The filter area is large, treatment capacity is largewhile the area is small.
  5. 5. Full dehydration and remarkable economic effect.
  6. 6. The filter cloth can be replaced quickly without mixing device.

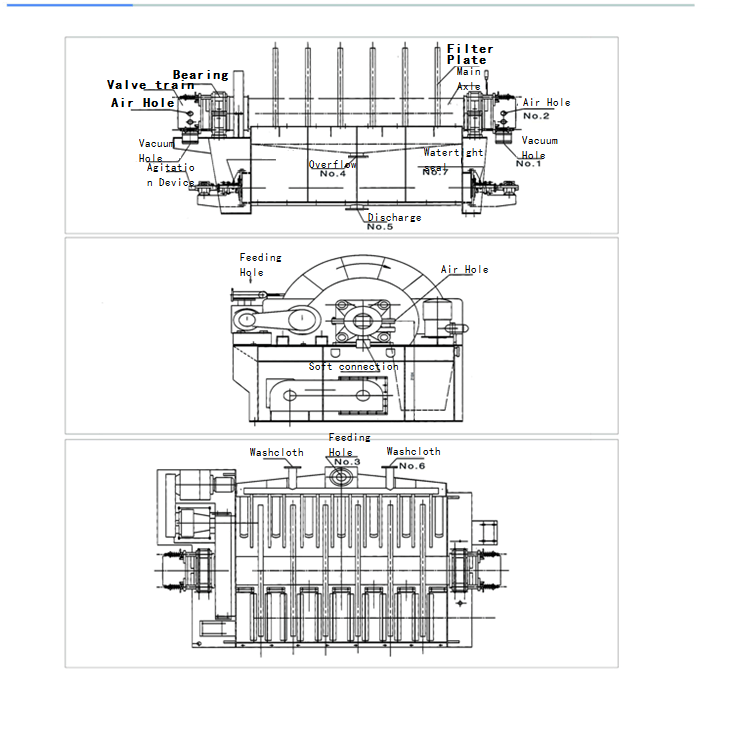

Disc vacuum filter is composed of several fan-shaped discs. Each fan-shaped sheet is a separate filter unit, and the filter cloth is sheathed on the fan-shaped sheet to form a filter chamber. The filter disc is driven by a motor. The filter disc rotates clockwise. The slurry in the filter chamber forms pressure difference on both sides of the filter medium by means of vacuum pump in the adsorption area. the agitator rotates to prevent solid precipitation. After the filter cake leaves the liquid surface, it continues to dehydrate under the action of vacuum. The filtrate passes through the filter cloth and is discharged from the distribution head through the filter tube. The filter cake is discharged into the discharging trough by back-blowing in the discharging area, and the whole operation is carried out in a continuous cycle.

Model

Filtration Area

m²

Filter Disc Diameter

mm

Filter Disc Quantity

Fan Quantity of Filter Disc

Motor Power kw

Weight

T

Main Shaft Motor

Agitation Motor

GPT10-2

10

2100

2

20

4

5.5

10.4

GPT15-3

15

2100

3

20

4

5.5

11

GPT20-4

20

2100

4

20

4

5.5

11.6

GPT25-5

25

2100

5

20

4

5.5

12.2

GPT30-6

30

2100

6

20

4

5.5

12.8

GPT35-7

35

2100

7

20

4

5.5

13.4

GPT40-8

40

2100

8

20

4

5.5

14

GPT48-4

48

3100

4

20

5.5

7.5

18

GPT60-5

60

3100

5

20

5.5

7.5

21

GPT72-6

72

3100

6

20

7.5

7.5

24

GPT84-7

84

3100

7

20

7.5

7.5

27

GPT96-8

96

3100

8

20

7.5

7.5

30
