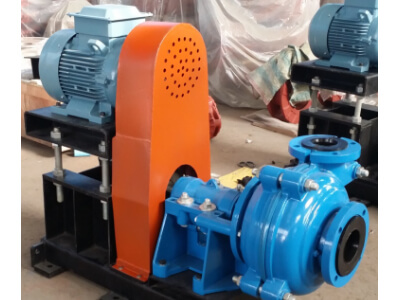

[Introduction] There are many kinds of rubber pumps. Large-scale rubber pumps are mainly used in building industrial.
[Capability] 12-400 M3/h
[Application] Mining, chemical industry, construction, metallurgy and other industries.
Chat With Us
Leave Message
When working, the melt is transported by the meshing of the driving gear and the driven gear, which results in the change of the working volume. The working volume is composed of pump body, gear groove and bearing sleeve with side plate function. When the gear rotates, the melt enters into the grooves of the two gears in the suction chamber. With the rotation, the melt is brought into the discharge chamber from both sides, and the gears mesh again, so that the melt in the groove is extruded from the discharge chamber and pressed into the outlet pipe. Bearings can not use the usual grease to avoid contamination of the melt, usually using melt self-lubrication.
|
Model |
Flow M³/h |
Lifting Height m |
Impeller Diameter mm |
Motor Model |
Motor Power kw |
Weight kg |
|
25PMJ |
12-18 |
11.5-14 |
195 |
Y100L2-4 |
3 |
127 |
|
2PNJ |
27-50 |
19-22 |
277 |
Y160M-4 |
11 |
400 |
|
2PNJ |
27-50 |
36-40 |
277 |
Y180M-4 |
18.5 |
400 |
|
4PNJ |
80-136 |
28-30.5 |
360 |
Y200L-4 |
30 |
460 |
|
4PNJ |
95-160 |
40-43 |
360 |
Y250M-4 |
55 |
460 |
|
6PNJ |
250-400 |
33-38 |
490 |
Y315S-6 |
75 |
1070 |
